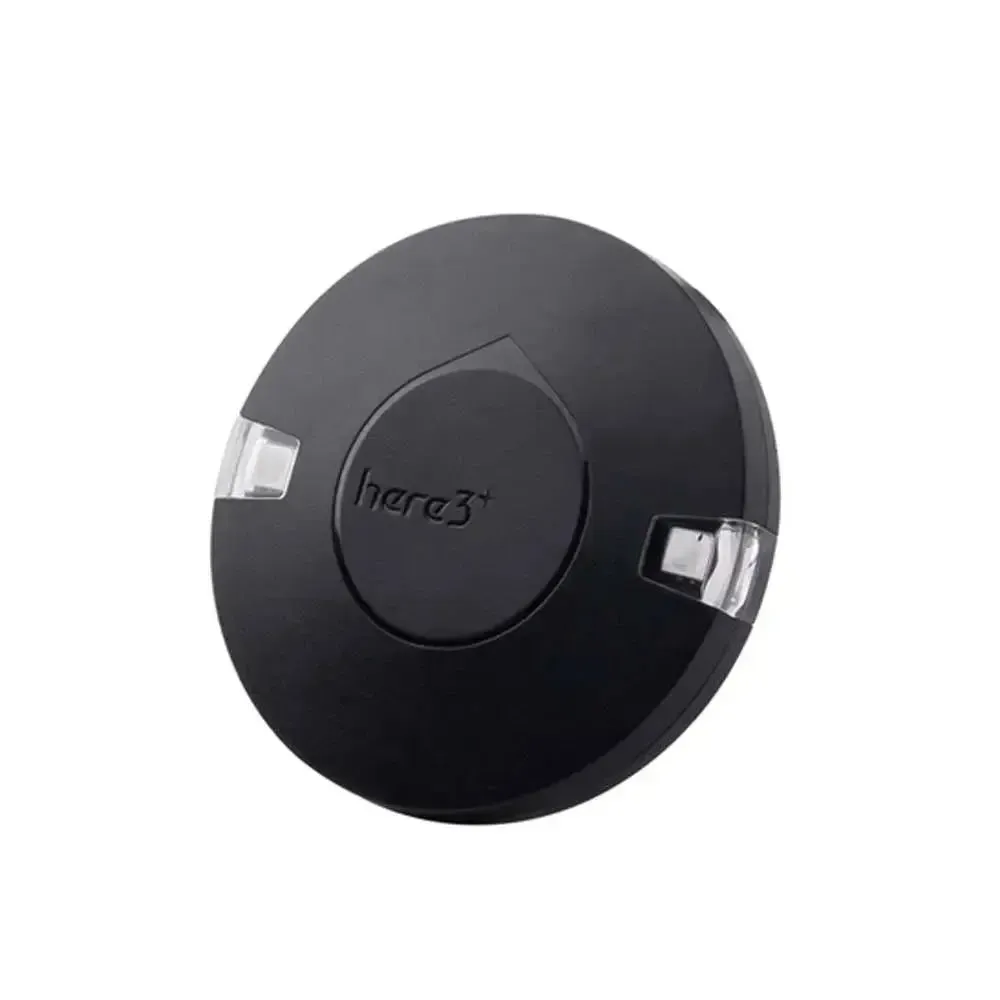

HEX HERE3  GNSS(M8P) RTK GPS MODULE

HEX HERE3 GNSS(M8P) RTK GPS MODULE

  • DefaultTitle

$ 58.05

$ 44.65

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

NOTE:- We might take 4 to 8 days to ship this product.

The HEX HERE3 GNSS (M8P) RTK GPS Module is an advanced positioning device designed to deliver highly accurate and reliable global navigation satellite system (GNSS) data for a wide range of applications. Built upon the u-blox M8P chipset, this module offers Real-Time Kinematic (RTK) capability, enabling centimeter-level positioning accuracy in real-time.

Equipped with multiple satellite constellations, including GPS, GLONASS, Galileo, and BeiDou, the HEX HERE3 GNSS Module provides robust satellite coverage and improved positioning performance even in challenging environments such as urban canyons or dense foliage.

Features:

RTK Capability
Multi-Constellation Support
High Sensitivity
Compact and Lightweight
Low Power Consumption
Robust Performance
Versatile Connectivity

Package Includes:

1× HEX HERE3 GNSS(M8P) RTK GPS MODULE
1× iStand
1× Allen key
5× Nuts
5× Bolts

Specification:-

Receiver Type u-blox high-precision GNSS modules (M8P-2)
Satellite Constellation GPS L1C/A, GLONASS L1OF, BeiDou B1I
Positioning accuracy 3D FIX: 2.5 m / RTK: 0.025 m
Processor STM32H757
IMU sensor ICM42688,RM3100
Navigation Update Rate 8 hz
Communication Protocol DroneCAN 8Mbit/s
Operating Temperature (°C) -40℃ to 85℃
Dimension (cm) 68mmx68mmx16mm
Shipping Weight 0.05 kg
Shipping Dimensions 12 × 12 × 6 cm
