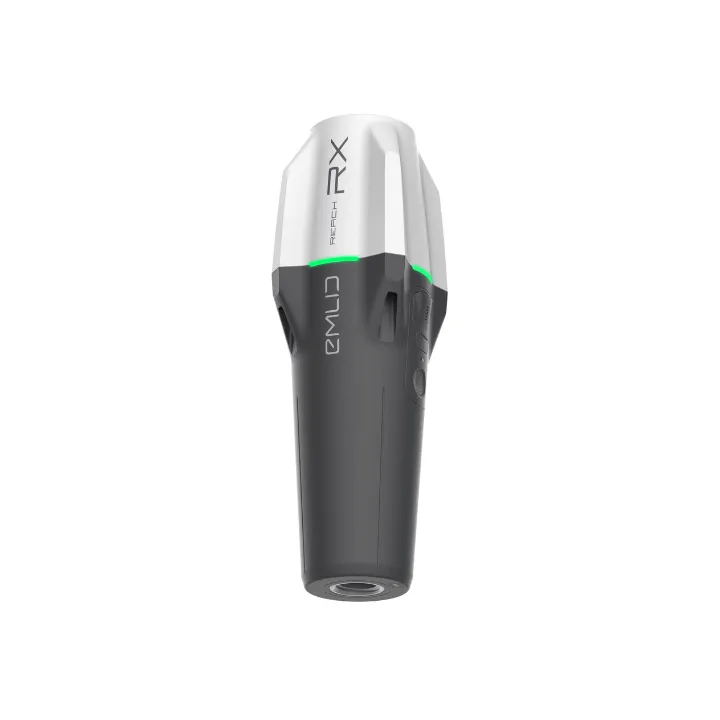

Emlid Reach RX - Apple MFI Certified
Network rover with centimetre accuracy
Emlid Reach RX is a portable and lightweight rover for data collection and correction with centimetre level accuracy. This iteration is Apple MFI certified, made to work seamlessly with iPhones and iPads.
Reach RX uses Bluetooth Low Energy (BLE) that allows you to connect and start surveying with your smartphone or tablet.
The Emlid Flow app helps you connect in seconds - enable Bluetooth, add network correction details (NTRIP) and collect your first point - with no complicated configuration required.
Key Features
250 grams / 172mm x 51mm x 39mm
Lightweight and small enough to fit in a pocket.
IP68
Waterproof up to 1.5 m depth, and protected from water and dust with silicone plugs.
-20 to 65 °C (-4 to 149 °F)
Tested extensively in conditions simulating the coldest winters and hottest summers.
Industrial Battery
Li-Ion battery
Industrial battery that handles both high and low temperatures well.
16 hours of work
Full day of work for 1 hour of charging. You can charge on-the-go from any USB port and power bank with the cable that comes with Reach RX.
2000 cycles
Tested charging and discharging while maintaining original capacity.
Centimetre accurate results
Reach RX tracks GPS/QZSS, Galileo, Glonass, and Beidou and gets a fix in under 5 seconds, even in challenging conditions.
Pocket-sized and lightweight
Reach RX weighs just 250 grams. It can be taken anywhere—it weighs less than a can of soda and fits in any glove compartment or backpack pocket.
No Specialist Training Required
With Reach RX, you can forget about spending time on in-person training and courses. Reach RX is designed to meet the expectations of both experienced professionals and non-surveyors who need to get highly-accurate results. Now anyone on the team can start using RTK.
Emlid Flow
Emlid Flow is a mobile app for land surveying, which can be used in conjunction with Emlid’s ecosystem of GNSS receivers.
It is an upgraded version of the ReachView 3 app, with new features and the Flow 360 cloud service.
Key features include:
- Linework and coding
- Geoids, grid shifts, custom coordinate systems
- Stake out points and lines
- Base and rover configuration
- Reach receiver monitoring for information on satellite reception, solution status, corrections stream state and battery charge level
- Manage NTRIP profiles
- Raw data logging (RINEX files for PPK workflows)
The app is synchronised with the cloud-based Emlid Flow 360. It allows you to access and manage your survey data from the browser at flow360.emlid.com.
With Emlid Flow 360, you can prepare for the fieldwork from the comfort of your office: Create a project, configure the coordinate system, choose a code library or upload a new one, or just import all the necessary data.
